UEM5Z1 Electronic MCCB Circuit Breaker
- Product Name: Electronic MCCB

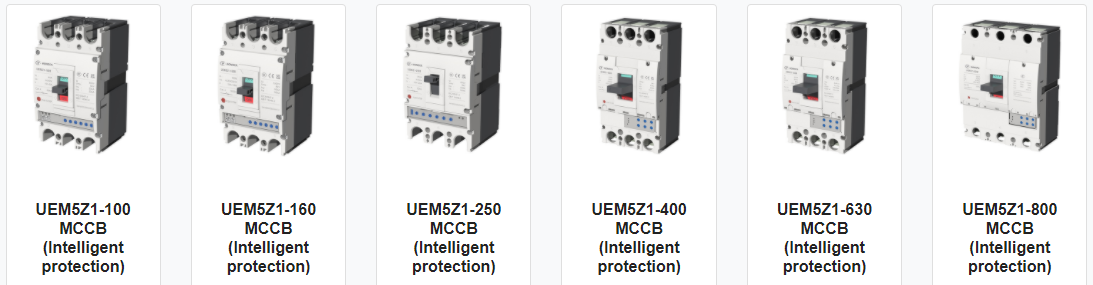

- Product Model: UEM5Z1-100/160/250/400/630/800/1600
- Poles Description: 3P、4P
- Product or Component Type: Circuit breaker
- Device Application: Distribution
- Network Type: AC
- Network Frequency: 50 Hz
- Certificates: CB/CCC/UKCA/CE
Overview
Circuit breakers can be equipped with undervoltage release device, shunt release device, auxiliary contact, alarm contact, electric operating mechanism, manual operating mechanism and other accessories.
Product Description
UEM5Z1 Electronic MCCB Circuit Breaker
Electronic MCCB Trip Unit Protection Functions
1.Overload long time delay
2.Short circuit short time delay
3.Short circuit instantaneous
4.Pre-alarm protection
UEM5Z1 Electronic MCCB Certificates of Compliance
| CB |
IEC60947-2
|
| CCC |
GB/T 14048 .2
|
| UKCA | BS EN 60947-2 |
| CE | EN60947-2 |
UEM5Z1 Electronic MCCB Circuit Breaker Characteristics
-Electronic MCCB Insulating parts such as base, cover and shaft are made of thermosetting composite materials, which have high strength and high insulation performance.
-Electronic MCCB unique contact design, fast breaking speed and small tripping force.
-Electronic MCCB rotating flip structure, easy to install accessories without opening cover.
-Electronic MCCB adopt advanced electromagnetic repulsion technology to quickly extinguish the arc.
-Electronic MCCB Low power consumption: the contact adopts silver-graphite alloy (Ag content 95%), the contact resistance is small, and the heat output is low.
-Electronic MCCB Flexible wiring: the positive and negative electrodes of the incoming terminal wiring are reversible and the wiring is flexible.
Related Products
UEY1 Automatic Reset Overvoltage Protectors
Compensation Contactor Module UEC1-K series
UEW6DHG DC Disconnectors
Residual Current Circuit Breaker 2 Pole
Smart MCB
UER3 Thermal Overload Relay
UEM5Z1 Smart Electronic MCCB Circuit Breaker
Standard operating environment and installation conditions
Operating Temperature:
– The reference operating ambient temperature of the thermal element with the thermal magnetic overcurrent release is set to +40 ° C
– Between +40°C and +70 °C, due to the temperature characteristics of the bimetal sheet of the trip device, the thermal trip value must be reduced
– Thermal trip value can be increased when below +40°C
– The performance of the microprocessor overcurrent release does not fluctuate due to the change of temperature, but when the temperature is higher than +40°C, due to the current in the circuit breaker
– The copper parts (moving and static contacts and connection terminals) flowing through will undergo some changes that will cause the rated continuous current to be reduced, and the maximum set value of the overload protection function will need to be reduced
– The performance of the circuit breaker cannot be guaranteed when the ambient temperature is higher than +70 ° C.
-In order to ensure the continuity of the work of the power equipment, it is necessary to consider keeping the temperature at a temperature where all the equipment can work normally, rather than only considering the operating temperature of the circuit breaker, such as taking strong ventilation in necessary occasions.
Altitude:
-Above 2000 m, with the increase of altitude, the composition of the atmosphere, insulation properties, cooling properties and air pressure change. At this time, the performance of the circuit breaker will be reduced, mainly in some major parameters, such as the maximum operating voltage and rated operating current and dielectric strength.
UEM5Z1-160 Technical Parameter
- Device Short Name: UEM5Z1-160
- Product or Component Type: Circuit breaker
- Poles Description: 3P
- Rated Current [In]: 160 A at 40 °C
- Rated Operational Voltage[Ue]: 400 V AC 50 Hz
- Rated Insulation Voltage [Ui]: 800 V AC 50Hz
- Rated Impulse Withstand Voltage [Uimp]: 8 kV
- Mechanical Durability: 7000 cycles
- Electrical Durability: 1000 cycles at 400 V In
- Connection Pitch: 30 mm
UEM5Z1-800 Technical Parameter
- Device Short Name: UEM5Z1-800
- Product or Component Type: Circuit breaker
- Poles Description: 3P、4P
- Rated Current [In]: 800 A at 40 °C
- Rated Operational Voltage[Ue]: 400 V AC 50 Hz
- Rated Insulation Voltage [Ui]: 800 V AC 50Hz
- Rated Impulse Withstand Voltage [Uimp]: 8 kV
- Mechanical Durability： 2500 cycles
- Electrical Durability: 500 cycles at 400 V In
- Connection Pitch: 70 mm
