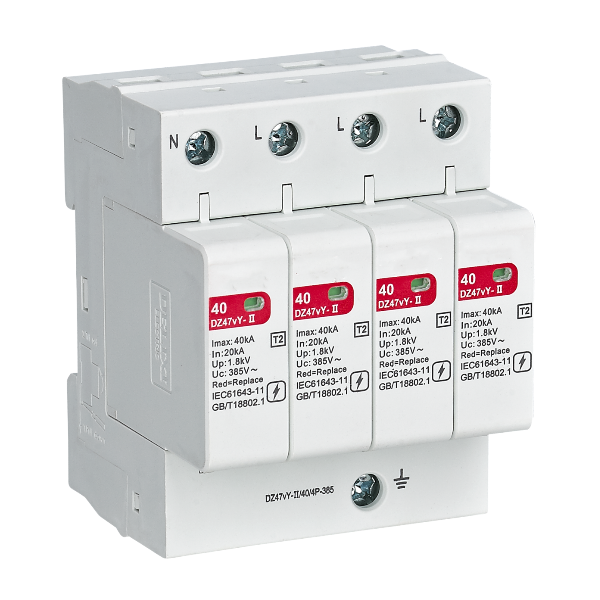

DZ47vY SPD Surge Protective Device
- Product Name: SPD Surge Protective Device
- Product Model: DZ47vY
- Rated Voltage: 230VAC
- Number of poles: 1P, 2P, 3P, 4P, 1P+N, 3P+N
- Standard: GB/T 18802.1, IEC 61643-11
- Degree of protection: IP20
- Certificates: CQC CB CE
Overview
DZ47vY series surge protective device SPD is mainly used for AC 50Hz/60Hz, rated voltage 230V/400V single-phase/three-phase power distribution system, used to suppress transient overvoltage, discharge surge energy, to prevent or reduce the damage caused by lightning strikes or operations caused by transient overvoltage to the equipment.
About our company
Kemus is a leading provider of electrical switchgear and electronic components. Our products include circuit breakers, surge protectors, disconnect switches, contactors, relays, and indicators for voltage and fault detection.
Kemus insists on a comprehensive quality assurance system, ensuring our products meet global standards for safety and reliability.
Product Description
DZ47vY SPD Surge Protective Device
DZ47vY SPD surge protective device is usually composed of nonlinear resistor, gas discharge tube, metal oxide varistor and so on. When a surge occurs in the circuit, these components respond quickly and direct the surge to the ground or other safe ground point. At the same time, the surge protector also has overcurrent protection function, which can cut off the circuit when there is overcurrent in the circuit and protect the equipment from damage.
DZ47vY SPD Surge Protective Device advantages:
1.Small size, save space:
The AC SPD surge protective device width is reduced by 30%, and the cabinet space is saved.
2.Unified style, higher recognition:
New surge lightning symbol
DZ47vY SPD Surge Protective Device features:
1.AC SPD surge protective device provide safe use and protection of products
– Built-in failure thermal trip device, safer use
– With failure indication and remote communication interface (with normally open and normally closed contacts)
2. SPD Convenient replacement operation
– Surge protective device pluggable module design for easy maintenance and replacement
3. SPD Surge Protector Wide applicability
– Surge protective device suitable for different power grid systems.
Related Products
UEY1 Automatic Reset Overvoltage Protectors
UEW6DHG DC Disconnectors
CDM3LT RCD Circuit Breaker
DZ47vY SPD Surge Protective Device
Power surge is caused by electrical equipment or electronic equipment in the on-off, lightning, static electricity and other reasons produced by the transient high-voltage pulse, these high-voltage pulse will cause damage to the circuit and components of the equipment, resulting in equipment failure or performance degradation. The role of the surge protector is to detect these high-voltage pulses in the circuit and quickly guide them to the ground wire or other safe ground point, thereby protecting the device from the damage of the surge.
Why Choose Kemus
Kemus Company Products Superiority
– High reliability: They responsible for protecting lines and equipment in the power system, which itself has high reliability and anti-interference, and can effectively protect the normal operation of the power system.
– High flexibility: They can be adjusted and controlled according to actual needs, with high flexibility and operability, and can adapt to different power system needs.
– Easy maintenance: If an electronic component fails, it can quickly replace the failed component;
– Supply Ability: Our company spirit of “all the pursuit of high quality, customer satisfaction for the purpose”, to provide customers with the most favorable prices, the most thoughtful service and the most reliable product quality.
– Original Country Technology: Our products incorporate cutting-edge technology sourced directly from the countries of origin, guaranteeing the latest advancements in electrical safety.
– Quality Assurance: Every products our company provide has a 100% passing rate in quality checks, reflecting our commitment to excellence and reliability in every unit.
Application Fields
Kemus Power Technology Cooperative Brand
Cooperate with us, you will get
Kemus is a leading provider of electrical switchgear and electronic components. Our electronic products reflect our commitment to ensuring reliability and adherence to global safety standards, marked by certifications such as UL/CUL, VDE, COC, and CCC. Kemus insists on a comprehensive quality assurance system, ensuring our products meet global standards for safety and reliability.
- Direct factory price
- Quality quaranteed
- Supply stability
- Delivery on time
- Thoughtful service
- More options from us
- Professional introduction and advice
- Small size and weight, save space
- Modular design reduces installation difficulty
- Removable, replaceable, easy to maintain and repair
- Reduce maintenance costs and time costs
- Reduce power system losses
- High flexibility and maneuverability
- As technology advances, it is easy to upgrade
Products Packing & Delivery
Kemus Electrical Product FAQ
- What is the customer you work with? We work with famous brands such as: Enel, SMA, JCI, GE, Honeywell, United Technologies, SGCC, Sinopec, China GuoDian, Power China, China Post, ZiJin Minning and so on.
- How does Kemus ensure the quality? Kemus Products have passed CCC, CB, TUV, CQC, CE, UKCA certification.
- Can I get samples from your company? Yes, Samples can be provided. International freight at your own expense.
- How long is the disconnector warranty period? Kemus most of the products warranty period is 18 months.
- What is your lead time? Normal within 10 days. It depends on detail items and quantity.
- If products have some quality problem, how would you deal with? Our company will responsible for all the quality problems.
- What is the number of poles DZ47vY SPD? 1P, 2P, 3P, 4P, 1P+N, 3P+N
- What is the Standard of DZ47vY SPD? GB/T 18802.1, IEC 61643-11
- What is the DZ47vY SPD voltage and current? DZ47vY series surge protective device is mainly used in AC 50Hz/60Hz single-phase/three-phase power distribution system with a rated voltage 230V/400V to suppress transient overvoltage.
