DZ47TRLE Transparent RCD Breaker
- Product Name: Transparent RCD Breaker
- Product Model: DZ47TRLE
- Rated Voltage: 1P+N/2P:230V~ ; 3P-4P: 400V~
- Rated Current: 6,10,16,20,25,32,40,50,60A
- Rated Remaining Operating Current: 15mA,30mA,50mA
- Poles: 1P+N,2P,3P,3P+N,4P
- Rated Frequency: 50 Hz
- Breaking Capacity: 6kA(C type 6-40A),4.5kA(C type 50-60A，D type )
- Meeting Standards: GB/T 16917.1
- Certificates: CCC CQC
Overview
DZ47TRLE Transparent RCD Breaker is assembled by DZ47TR miniature circuit breaker and leakage trip device, with leakage (electric shock), overload, short circuit and other protection functions, but also according to the needs of users to increase overvoltage, undervoltage protection functions.
Kemus is a leading provider of electrical switchgear and electronic components. Our products include circuit breaker, surge protectors, disconnect switches, contactors, relays, and indicators for voltage and fault detection.
Kemus insists on a comprehensive quality assurance system, ensuring our products meet global standards for safety and reliability.
Product Description
DZ47TRLE Transparent RCD Breaker Mini Circuit Breaker is suitable for AC 50Hz, rated voltage 230V/400V, rated current to 60A and below the line, used for the indirect contact protection of people, as well as the building and similar uses of the line overcurrent protection. RCD breaker also provides protection against fires caused by persistent ground faults due to inactivity of overcurrent protection devices. Leakage circuit breakers with overvoltage protection can also protect against excessive voltage rise due to network faults.
These products are increasingly used in low-voltage distribution systems as backup protection against ground faults and direct and indirect contact shocks.
DZ47TRLE Transparent RCD Breaker Classification:
– Trip type: type C, type D
– According to the number of poles: 1P+N、2P、3P、3P+N、4P
– According to rated current points: 6A、10A、16A、20A、25A、32A、40A、50A、60A
– According to the leakage action characteristics: 15mA, 30mA, 50mA
DZ47TRLE Transparent RCD Breaker Characteristics:
– Miniature RCCB has short circuit protection
– Leakage Breaker has overload protection
– Transparent RCD breaker has earth leakage protection

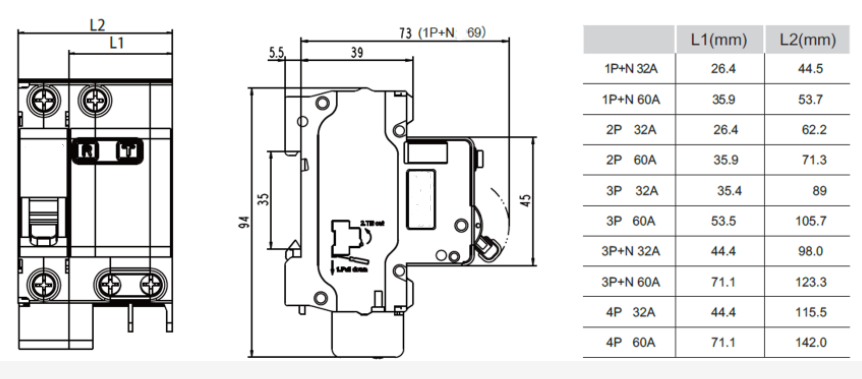

DZ47TRLE Transparent RCD Breaker installing dimension:
Related Products
UEY1 Automatic Reset Overvoltage Protectors
UEW6DHG DC Disconnectors
CDM3LT RCD Circuit Breaker
DZ47TRLE Transparent RCD Breaker
Standard operating environment and installation conditions
– Operating temperature range: -20℃ ~ +60℃
– Altitude: No more than 2000m
– Pollution level: Level 2
– Installation category: Class II/III
– For products with N poles, when wiring, the neutral line must be connected to the pole marked with N.
