Circuit Breaker MCB Din Rail GYM10
- Product Name: Circuit Breaker MCB Din Rail GYM10
- Product ModelCDM6HL : GYM10
- National Standard: IEC60898-1
- International Standard: IEC60898-1
- Certificate: CCC CB CQC CE TUV
- Poles: 1P 2P 3P 4P
- Rated Voltage: 230V/400V
- Rated Current: 6A-63A
Overview
Place of Origin:Zhejiang, China
Model Number:GYM10
Application:Industrial, protection, electric power, households, circuit-breaking
Material:/, Silver Contact
Breaking Capacity:6KA
Rated Voltage:230V/400V
Mounting Type:Rail Mounting
BCD Curve:C
Type:MCB, Mini
Rated Frequency (Hz):50/60 Hz
Protection:Other
Product name:MCB Miniature Circuit Breaker
Rated current:1A-63A
Certifications:CE
Standard:IEC60898-1
Warranty/guarantee:1YEARS
About our company
Kemus is a leading provider of electrical switchgear and electronic components. Our products include circuit breakers, relays, surge protectors, DC disconnect switch, contactors, relays, ATS and indicators for voltage and fault detection.
Kemus insists on a comprehensive quality assurance system, ensuring our products meet global standards for safety and reliability.
Product Description
MCB GYM10 Circuit Breaker:
GYM10 miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 230V/400V and rated current from 1A to 63A.
GYM10 Circuit Breaker also can be used for non-frequent on-and-off switch operation under normal circumstance.
In complicance with IEC/EN60898-1 With indicator function in the contact position. Single busbar design. Maximum connecting ability of 25mm , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger. The price-quality ratio is very high.
|
Rated current In
|
1-63A
|
|
|
Poles
|
1P 2P 3P 4P
|
|
|
Rated voltage Ue
|
1P:230/400V~ 2/3/4P:400~
|
|
|
Insulation voltage Ui
|
500v
|
|
|
Rated frequency
|
50/60Hz
|
|
|
Rated breaking capacity
|
4500/6000A
|
|
|
Rated impulse withstand voltage(1.2/50)Uimp
|
6kV
|
|
|
Dielectric test voltage at and ind.freq.for 1min
|
2kV
|
|
|
Polution degree
|
2
|
|
|
Thermo-magnetic release characteristic
|
B C D
|
|
|
Electrical life
|
4000
|
|
|
Mechanical life
|
10000
|
|
|
Installation
|
||
|
Contact position indicator
|
Yes
|
|
|
Portection degree
|
IP20
|
|
|
Reference temperature for setting of thermal element
|
30℃
|
|
|
Ambient temperature (with daily average ≤35℃)
|
-5~+40℃
|
|
|
Storage temperature
|
-25~+70C
|
|
|
Terminal connertion type
|
Cable/U-type busbar/Pin -type busbar
|
|
|
Terminal size top/bottom for cable
|
25mm²
18-3 |
|
|
Tightening torque
|
3.0N*m
22 |
|
|
Mounting
|

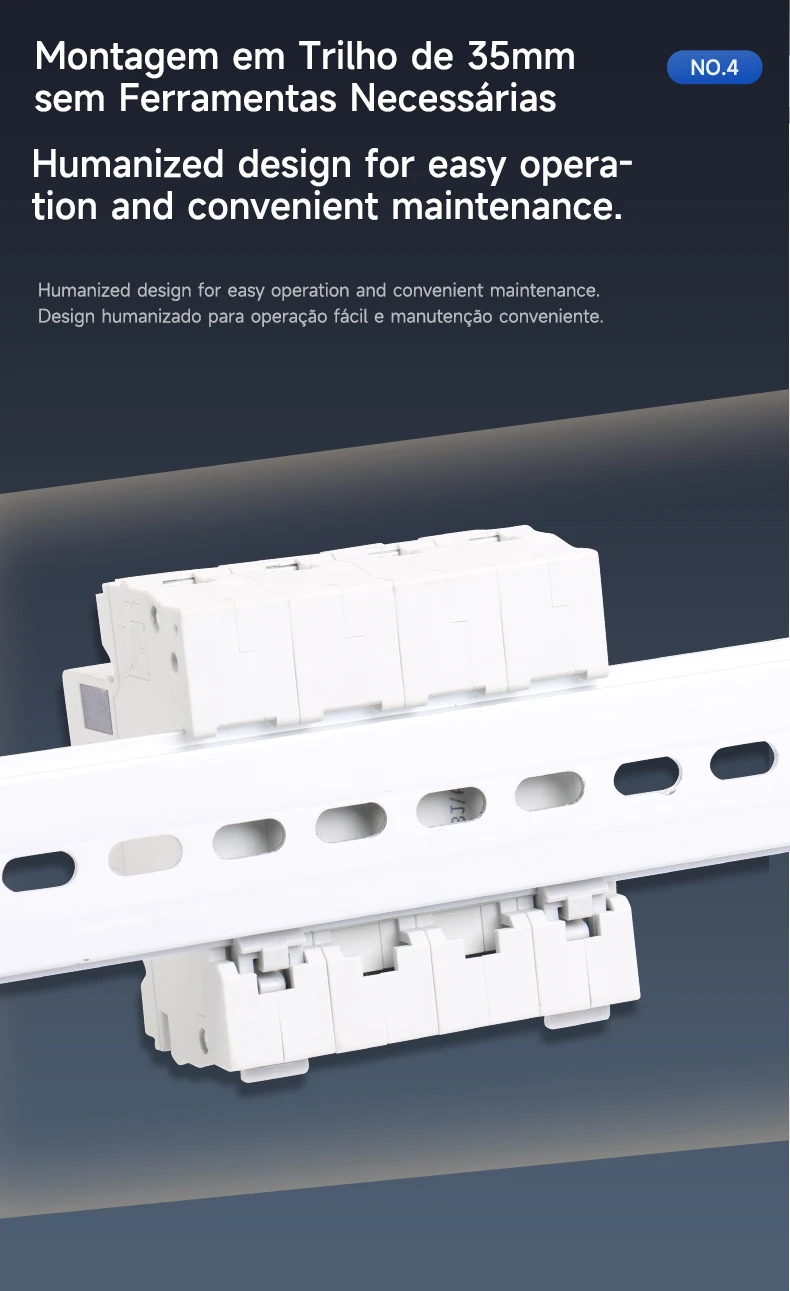

On DIN rail FN 60715(35mm) by means of fast clip device
|
|
|
Connection
|
Top and bottom
|
|
|
Combination with accessories
|
||
|
Auxillary contact
|
Yes
|
|
|
Alarm contact
|
Yes
|
|
|
Shunt release
|
Yes
|
|
|
Undervoltage release
|
Yes
|
|
Electrical products more information, such as product selection manual, product drawing, welcome to contact us, look forward to win-win cooperation
